Point of Delivery Fuel Filtration

Ultimate Coalescing & Centrifugal POD Systems

Ultimate Coalescing & Centrifugal Fuel / Water Separators

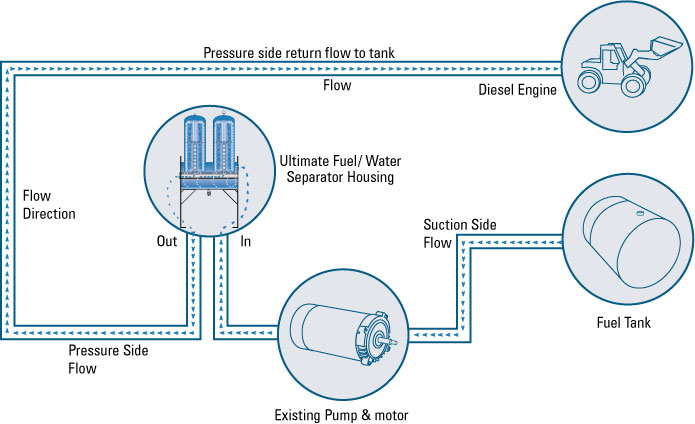

The Ultimate Coalescing & Centrifugal Fuel / Water Separators can be installed on the pressure side and/or the suction side of the existing dispensing fuel pump and are sized based on the maximum flow rate of the pump. This schematic shows pressure side application.

Point of delivery fuel filtration schematic 1

This schematic shows suction side application.

Point of delivery fuel filtration schematic 2

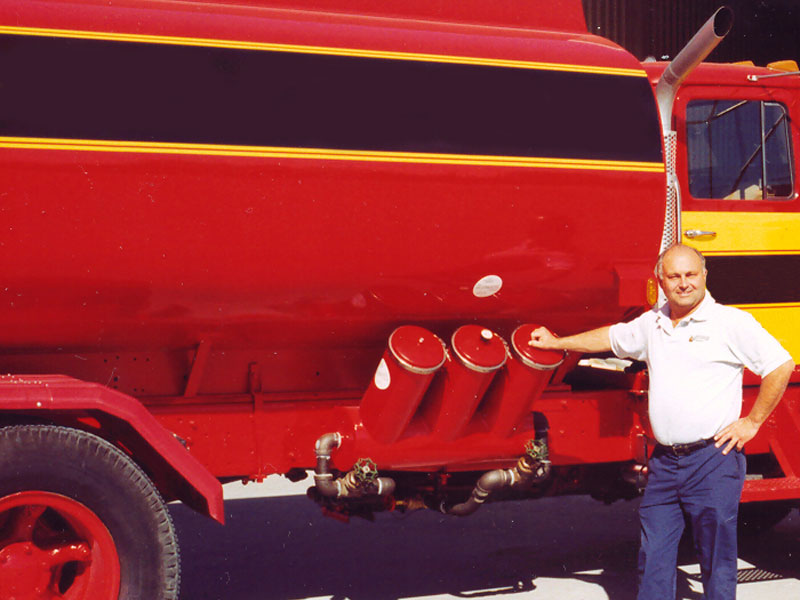

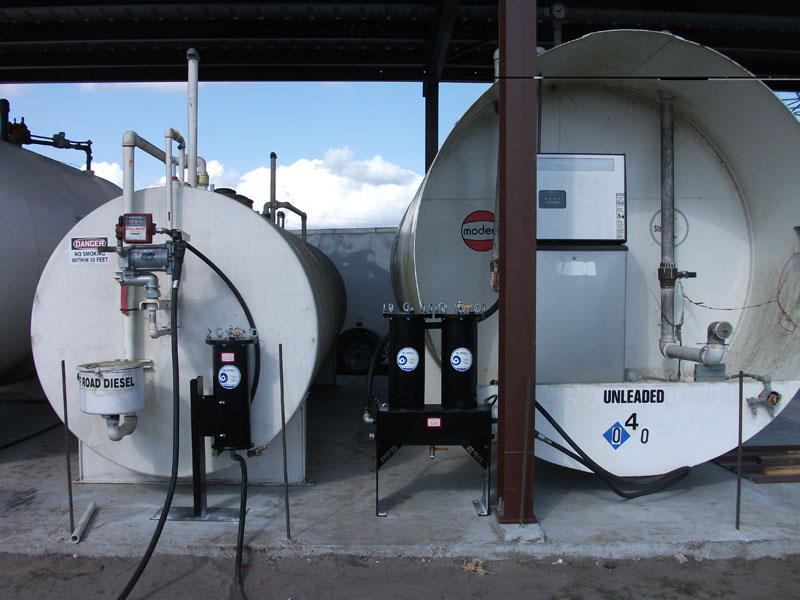

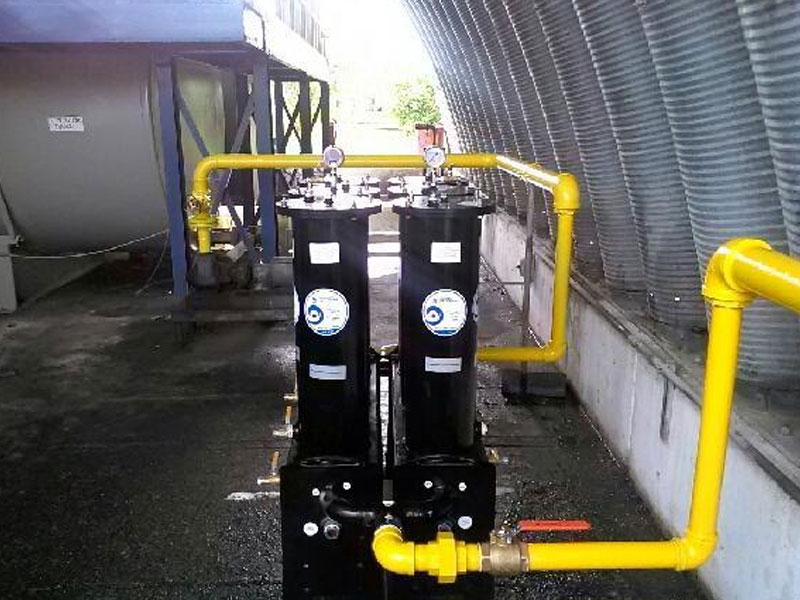

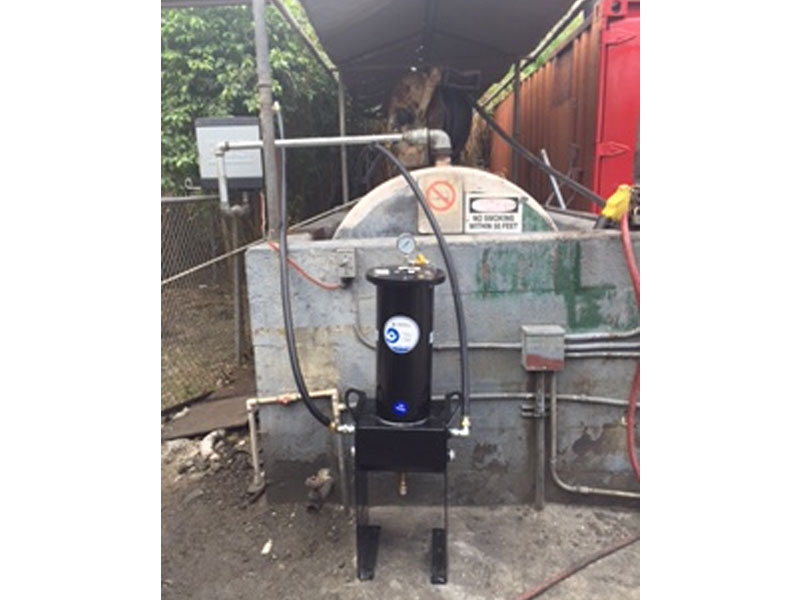

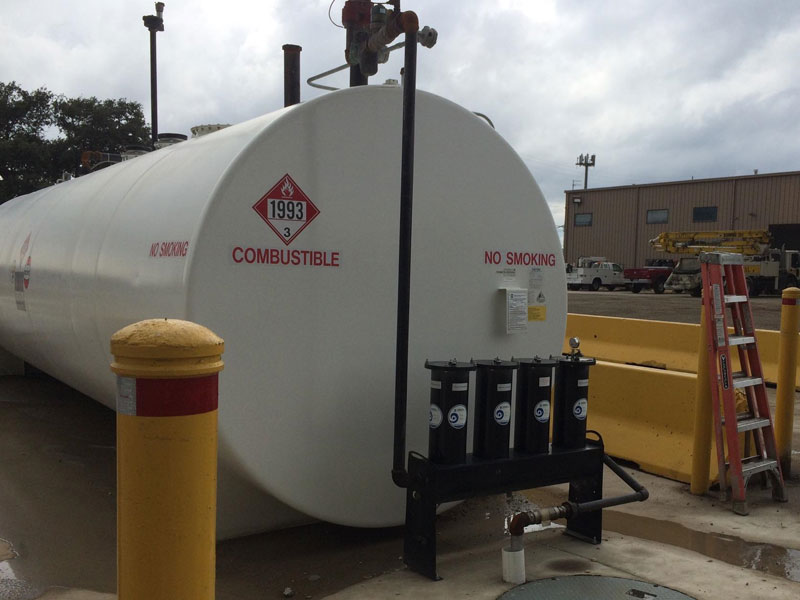

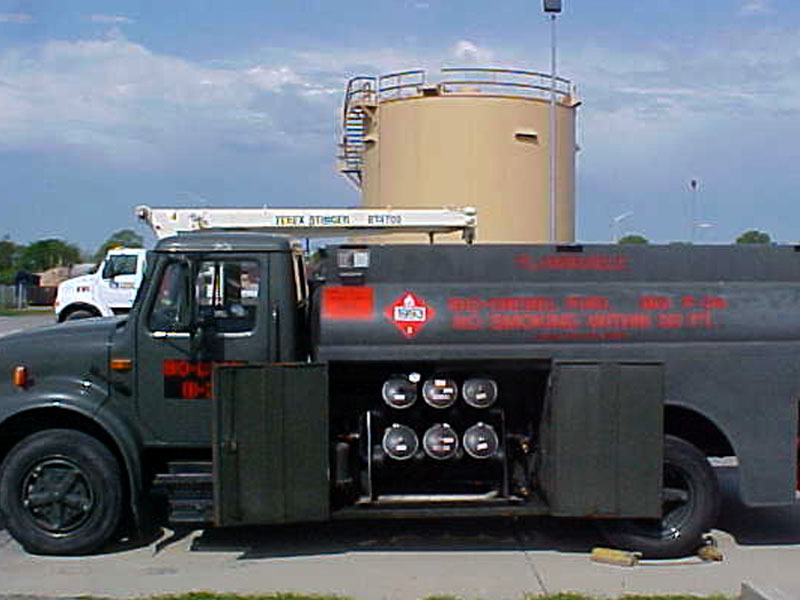

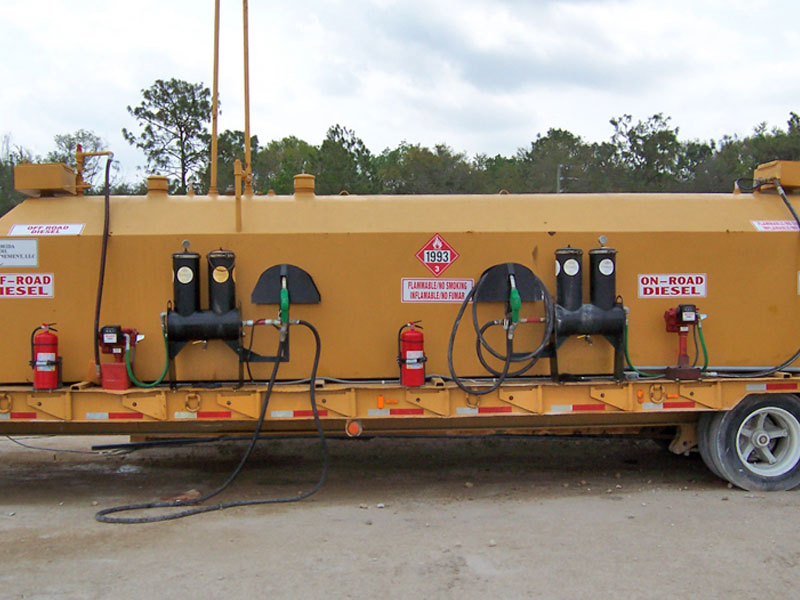

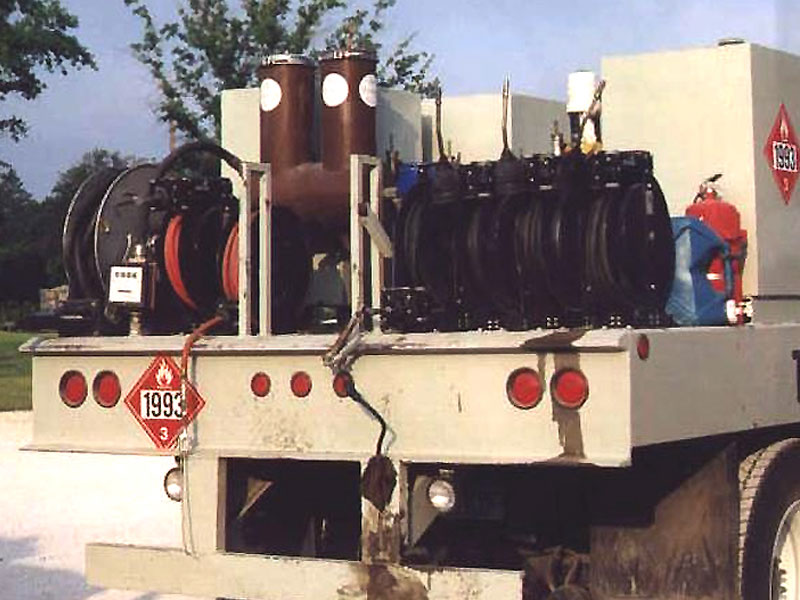

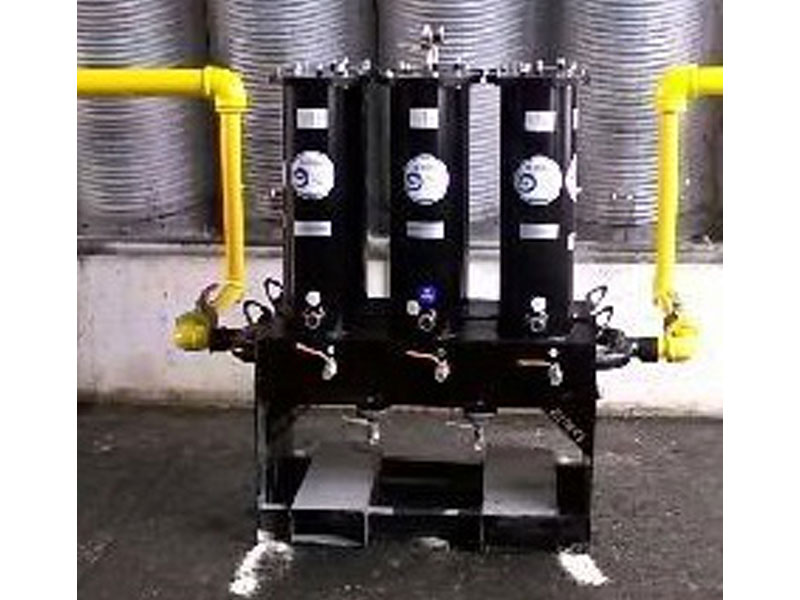

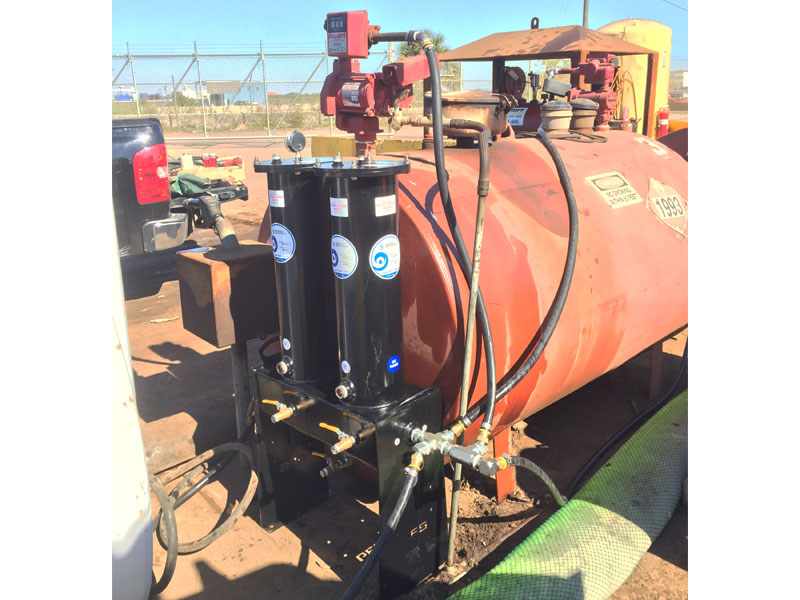

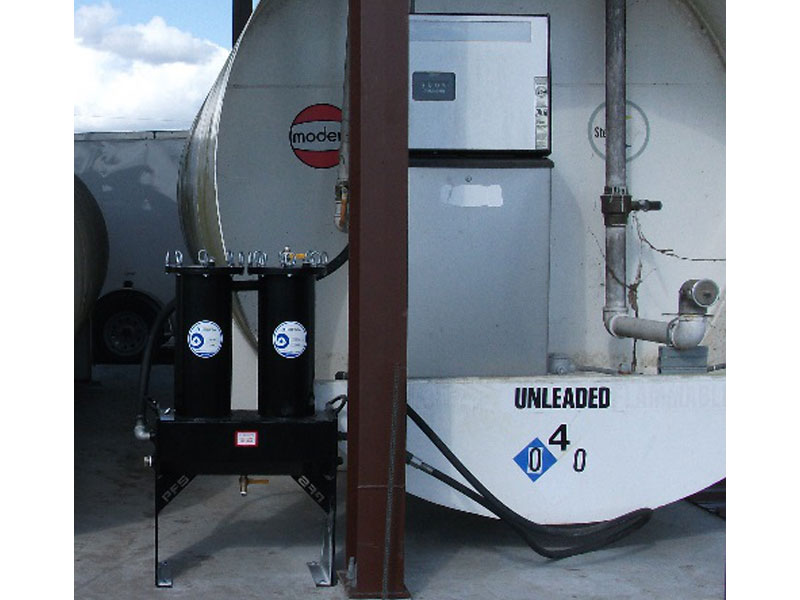

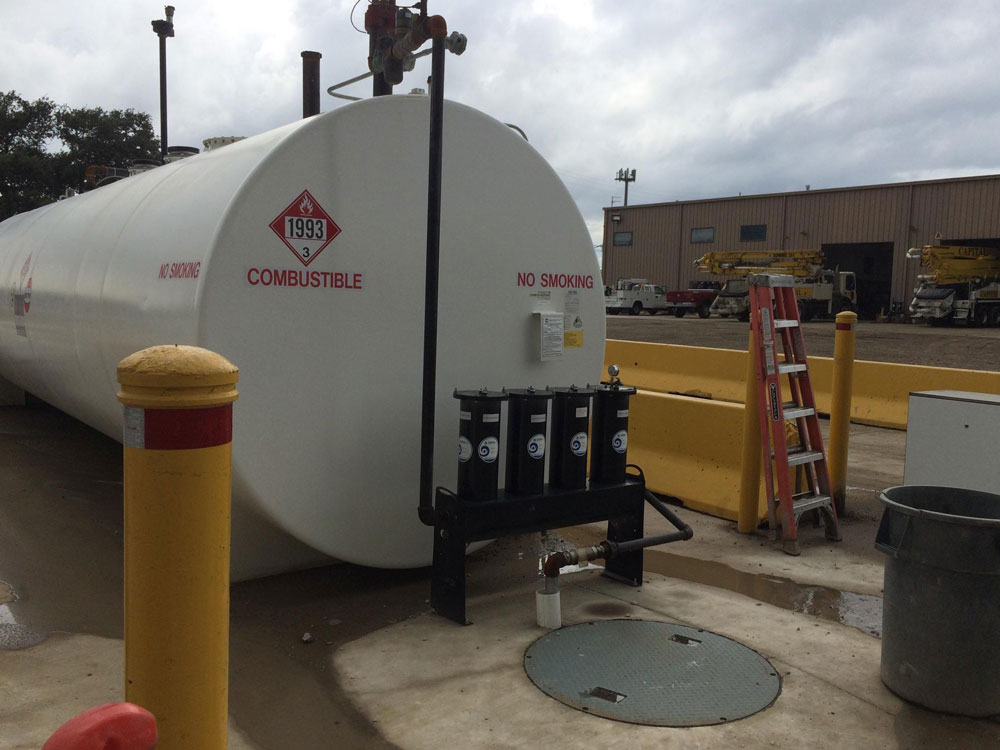

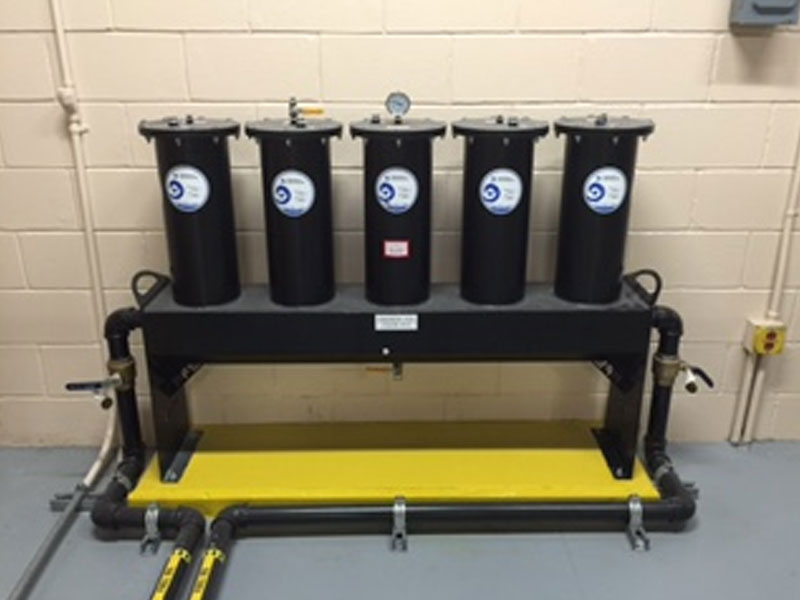

Application Photos

3 Step Filtration Process

Model 1175-5175
Ultimate Coalescing & Centrifugal Fuel / Water Separator housing

Step 1 Coalescing chamber: The fuel enters the filter housing and is forced down into the coalescing chamber where the fuel flows through very fine stainless steel mesh material where the small water droplets come together (Coalesce) as the fuel flows through the small opening in the mesh material. The heavier water droplets drop out of the fuel flow and settle to the bottom to be drained off. Water sight glasses are present to view the presence of water and a drain valve in also provided.

Step 2 Centrifugal chamber: This process occurs when the fuel exits the coalescing chamber and flows upward into the centrifugal chamber. The fuel flows through a stainless steel pipe and comes in direct contact with a stainless steel coned baffle spinning the fuel in a circular motion (Centrifugal force). This motion causes the heavier water droplets to fall out of the fuel flow to be drained off. Water sight glasses are present to view the presence of water and a drain valve in also provided.

Step 3 Depth-type filter chamber: After the fuel exits the centrifugal chamber it enter the filtration chamber, the 3-micron cellulose depth-type filter traps the majority of the solids particulates including: dirt, metal, bacteria, algae, microbes, and other solid contaminants. The filter also has water absorbing capabilities to remove free and emulsified water that was not removed in the first two steps. The depth-type filter has a very large water and contaminate holding capacity which means long filter life and high efficiency. Each filter can absorb up to 1 gallon of water and can hold 8-10 lbs of solids. Once the fuel is filtered it exists the filter housing through a stainless steel pipe ultra clean.

Pre-filter bag housing are available with all models to help protect the pump and extend filter element life

Products

Specifications

Specifications	1175	2175	3175	4175	5175
Coalescing & Centrifugal Water Separation	YES	YES	YES	YES	YES
Max. Flow Rate & Pressure	15 gpm / 100 psi	26 gpm / 100 psi	39 gpm / 100 psi	52 gpm / 100 psi	65 gpm / 100 psi
Dimensions W x L x H	12″ x 12″ x 50″	12″ x 24″ x 50″	12″ x 36″ x 50″	12″ x 48″ x 50″	12″ x 60″ x 50″
Dry Weight w/ Filters	110 lbs.	220 lbs.	360 lbs.	440 lbs.	550 lbs.
Inlet & Outlet	1″ FNPT	1″ FNPT	1 1/4″ FNPT	1 1/2″ FNPT	2″ FNPT
Gauge, Sight Glasses, & Water Drain Valve	Included	Included	Included	Included	Included
Quantity & Filter Part#	(1)-#3914	(2)- #3914	(3)- #3914	(4)- #3914	(5)- #3914
Viton Cover O-ring	#0438	#0438	#0438	#0438	#0437
Filter Micron Rating	3-Micron 99.33% efficiency	3-Micron 99.33% efficiency	3-Micron 99.33% efficiency	3-Micron 99.33% efficiency	3-Micron 99.33% efficiency
Filter Performance per ISO 16889	B3<(c)=150	B3<(c)=150	B3<(c)=150	B3<(c)=150	B3<(c)=150
Filter Solid Holding Capacity	8-10 lbs each filter	8-10 lbs each filter	8-10 lbs each filter	8-10 lbs each filter	8-10 lbs each filter
Filter Water Holding Capacity	1 gallon each filter	1 gallon each filter	1 gallon each filter	1 gallon each filter	1 gallon each filter

#3914 Cellulose Depth-Type Filter Media

cellulose-depth-type-filter-media

Axial flow between layers of media
Creped cellulose with interlocking layers to remove solids efficiently
High efficiency filtration with low micron levels
Filter Performance B<3(c)=150
99.33% efficient in 3-micron size range
Very high solid holding capacity 8-10 lbs per filter
Removes bacteria, algae, microbes, dirt, rust, and other solids
Fuel cleanliness targets ISO 19/16/14 – 16/14/12
With a single pass of filtration we can reduce ISO cleanliness by 2-3
High water holding capacity- 1 gallon per filter
Absorbs free and emulsified water
Inexpensive high quality product
Long filter life: will last many times longer than conventional pleated paper filters
Most conventional filters will not remove water

Point of Delivery Diesel Fuel Test Results

Example #1
Pleated paper filter ISO Cleanliness 20/18/16
PFS #3914 filter ISO Cleanliness 16/14/12

Example #2
Pleated paper filter ISO Cleanliness 20/18/17
PFS #3914 filter ISO Cleanliness 16/14/12

Example #3
Pleated paper filter ISO Cleanliness 23/21/19
PFS #3914 filter ISO Cleanliness 18/16/14

Example #4
Pleated paper filter ISO Cleanliness 21/18/14
PFS #3914 filter ISO Cleanliness 19/16/12

Example #5
Pleated paper filter ISO Cleanliness 21/18/14
PFS #3914 filter ISO Cleanliness 19/16/12

Example #6
Pleated paper filter ISO Cleanliness 23/21/19
PFS #3914 filter ISO Cleanliness 18/16/13

Example #7
Pleated paper filter ISO Cleanliness 20/19/15
PFS #3914 filter ISO Cleanliness 16/14/11

Example #8
Pleated paper filter ISO Cleanliness 19/17/16
PFS #3914 filter ISO Cleanliness 17/16/13

Lab: PredictiveMaintenance Services
OEM’s have set operational target ISO cleanliness levels of ISO 19/16/12-16/14/12

Used Fuel Filters

Used dirty fuel filters full of dirt, bacteria, algae, water, microbes, and other solid contaminates

Benefits

What you can expect after installing the product

Ultra clean water free fuel
Fewer service calls related to dirty fuel
Longer OEM filter life
Longer injector life
Longer fuel pump life
Longer engine life
Less down time
Long Depth-type filter life
150,000 + gallons of filtered fuel in between depth-type filter changes
Great ISO Fuel cleanliness levels
Quick return on your investment
Often times better fuel economy
Higher engine performance
Environmental friendly product
Low maintenance product
Fewer fuel additives

10 year product warranty. Best in the industry.
