Hydraulic Oil Filtration

Ultimate Stationary Oil Recirculating Filtration Systems

Stationary Oil Recirculating Filtration Systems Download Brochure

Stationary Recirculating Systems With Pre-Filter Bag Housing Schematic

The fluid enters a 5-micron bag filter housing on the suction side of the pump to trap the larger solid particles. The pre-filter will help protect the pump against wear and extend the life of the 3-micron depth-type filter in the finishing housings. All of the PFS systems use cellulose depth-type filters to remove water and solid contaminates.

Stationary Recirculating Systems Without Pre-Filter Bag Housing Schematic

All of the PFS systems use cellulose depth-type filters to remove water and solid contaminates. The fluid is drawn out of the tank and flows through the pump and then into the PFS finishing housings were the cellulose depth-type filter absorbs water and traps solid particulates.

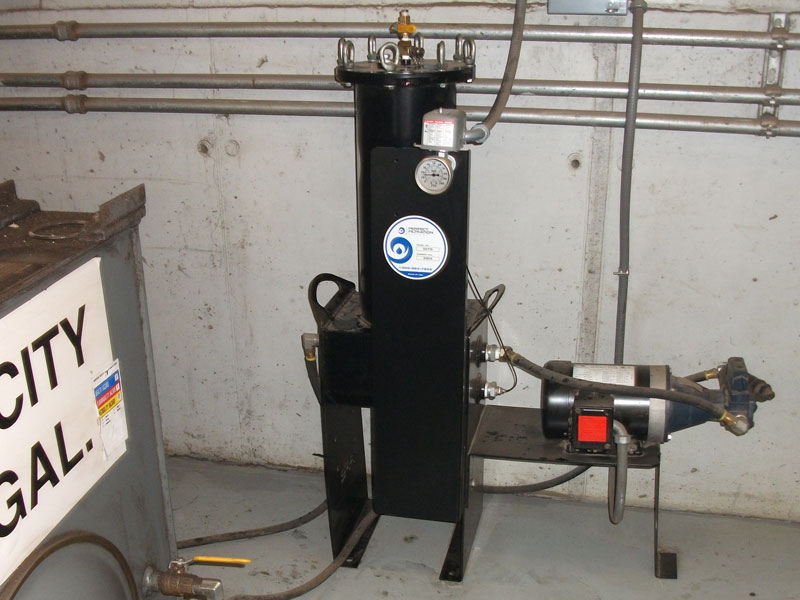

Application Photos


Models: 1075-5075’s Ultimate Coalescing Filtration Housing

Two step filtration process:

Step 1 Coalescing chamber: The oil enters the filter housing and is forced down into the coalescing chamber where the oil flows through very fine stainless steel mesh material where the small water droplets come together (Coalesce) as the oil flows through the small opening in the mesh material. The heavier water droplets drop out of the fluid flow and settle to the bottom to be drained off. Water sight glasses are present to view the presence of water and a drain valve in also provided.

Step 2 Depth-type filter chamber: After the oil exits the coalescing chamber it enters the filtration chamber, the 3-micron cellulose depth-type filter traps the majority of the solids particulates including: dirt, metal, bacteria, algae, microbes, and other solid contaminants. The filter also has water absorbing capabilities to remove free and emulsified water that was not removed in the first two steps. The depth-type filter has a very large water and contaminate holding capacity which means long filter life and high efficiency. Each filter can absorb up to 1 gallon of water and can hold 8-10 lbs of solids. Once the oil is filtered it exists the filter housing through a stainless steel pipe ultra clean. Model 8000F’s Do not use a coalescing chamber, the hydraulic fluid flows directly into the filter element to absorb free and emulsified water.

Pre-filter bag housing are available with all models to help protect the pump and extend filter element life

Model 2075


Products

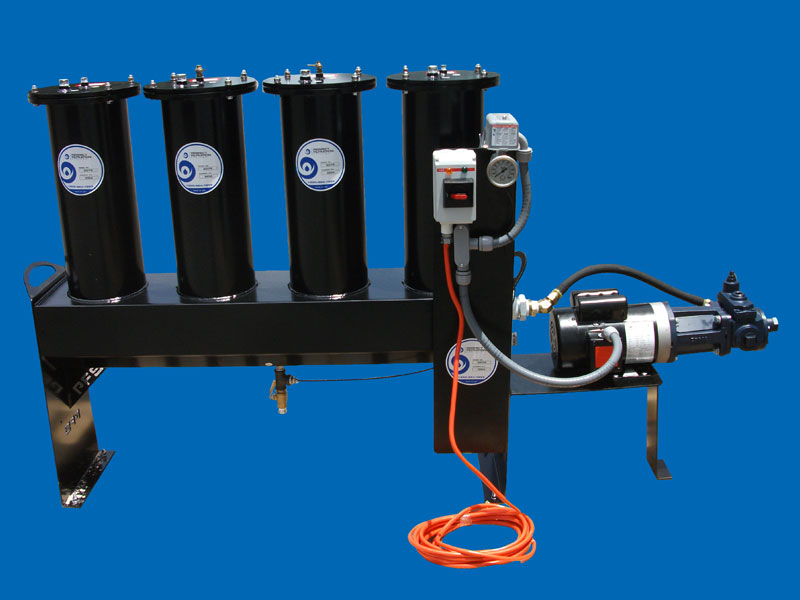

Model: 2075-5-ABB-B


Specifications

Model Model 8000F-FM Model 1075-3-ABB Model 2075-5-ABB Model 3075-8-ABB Model 4075-10-ABB Model 5075-15-ABB
Coalescing Water Separation No Yes Yes Yes Yes Yes
Standard Gear Pump 3 GPM 3 GPM 5 GPM 8 GPM 10 GPM 15 GPM
Motor Horse Power 1 HP 1 HP 1 HP 1 HP 1 HP 1 HP
Standard Motor Voltages 120VAC, 1 phase, 60HZ 120VAC, 1 phase, 60HZ 120VAC, 1 phase, 60HZ 120VAC, 1 phase, 60HZ 120VAC, 1 phase, 60HZ 120VAC, 1 phase, 60HZ
Available Voltages 240, 1 phase 50/60 hz, or 240/480, 3 phase, 50/60 hz, or Explosion Proof or Pneumatic
Standard ABB Motor Starter and Square D Hi/Lo Pressure Switch Included Included Included Included Included Included
Width 12″ 12″ 12″ 12″ 12″ 12″
Height 36″ 55″ 55″ 55″ 55″ 55″
Length 12″ 30″ 42″ 54″ 66″ 78″
Approx. Dry Weight 125 lbs 175 lbs 275 lbs 400 lbs 500 lbs 600 lbs
Tank Sizes 50-300 Gal. 50-300 Gal. 300-600 Gal. 600-900 Gal. 900-1500 Gal. 1500-2000 Gal.
Water Sight Glasses NA Included Included Included Included Included
Standard Drain 1/2″ NPT 1/2″ NPT 1/2″ NPT 1/2″ NPT 1/2″ NPT 1/2″ NPT
Water Removal Efficiency 99.90% 99.90% 99.90% 99.90% 99.90% 99.90%
Optional Items
5-Micron Pre-Filter Bag Housing Suffix-B Suffix-B Suffix-B Suffix-B Suffix-B Suffix-B
Number of Bag Housings Required 1 1 1 1 1 1

Filter Selection and Specifications

Filter # Fluid Type Filter Dimensions Micron Rating Beta Rating Water Capacity
3914 Diesel Fuel 7″ x 19.75″ 3 Micron B3<(c)=150 1 Gal.
7534 ISO 32-100 Hydraulic Oil 7″ x 19.75″ 3 Micron B3<(c)=150 1 Gal.
7534 ISO 32-100 Turbine Oil 7″ x 19.75″ 3 Micron B3<(c)=1000 1 Gal.
7546 ISO 150-220 Gear Oil 7″ x 19.75″ 7 Micron B7<(c)=200 1 Gal.
7548 ISO 320-460 Gear Oil 7″ x 19.75″ 15 Micron B15<(c)=200 1 Gal.
5005 All 7″ x 15″ 5 Micron Nominal

3914 Cellulose Depth-Type Filter Media

cellulose-depth-type-filter-media

  • Axial flow between layers of media
  • Creped cellulose with interlocking layers to remove solids efficiently
  • Performance to B<3(c)=150, B<7(c)=200, B<15(c)=200
  • Very high solid holding capacity= 8-10 lbs per filter
  • Removes bacteria, algae, microbes, dirt, rust, and other solids
  • Can achieve very low ISO cleanliness levels
  • High water holding capacity= 1 gallon per filter
  • Will absorb free and emulsified water
  • Can maintain water levels to below 50ppm
  • Water efficiency 99.90%
  • Inexpensive high quality product
  • Long filter life: will last many times longer than conventional pleated paper filters
  • Most conventional filters will not remove water

How to Order a Stationary Oil Recirculating Filtration System

How to Order Stationary Recirculating Oil Filtration System

Request Estimate

  • Are you ready to save money and extend equipment life? Contact us for an estimate.
